Flame-retardant transfer tape

Flame retardant transfer tape is made by coating a layer of flame-retardant film on the release paper, and then it is shaped after being baked in a specific oven.

Color:Clear
Thickness: 0.05mm
Length: 33m | 50m | Customized
Width: Customized
Backing: Non-backing
Adhesive: FR Acrylic adhesive
Liner: Yes
Flame retardant level: V-0

Flame-retardant transfer tape technical data sheet

Color	Clear
Thickness(mm)	0.05
Width(mm)	Customized
Length(m)	33 \| 50
Backing	Non-backing
Adhesive	FR Acrylic
FR Leven	V-0

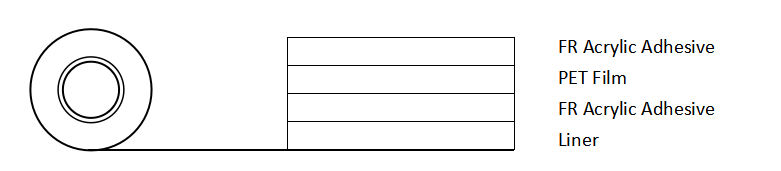

Flame-retardant transfer tape structure

Backing: PET Film
Adhesive: FR Acrylic adhesive
Liner: Yes

Flame-retardant transfer tape features

High Flammability Rating: UL 94 VTM-0 rating for excellent safety performance
Low Water Absorption: Approx. 0.06% water absorption ensures adhesion of printed patterns
High Temperature Resistance: Withstands high temperatures up to 115℃
High Voltage Resistance: Withstands voltages up to 11000V for strong electrical insulation
Environmental Compliance: Meets UL, CSA, IEC safety standards; RoHS, SGS/WEEE certified
Cost-Effective: Superior cost-performance compared to similar products

Flame-retardant transfer tape applications

Electrical Insulation: Used for electrical insulation in new energy vehicles, photovoltaic/energy storage, power electronics, consumer electronics, home appliances and medical equipment.
Cable/Airflow Management: Used for wire/cable management and airflow guidance in data center control rooms.
Electrical Isolation: Used as isolation barriers for high-voltage electrical areas between PCBs or between PCBs and metal enclosures.
